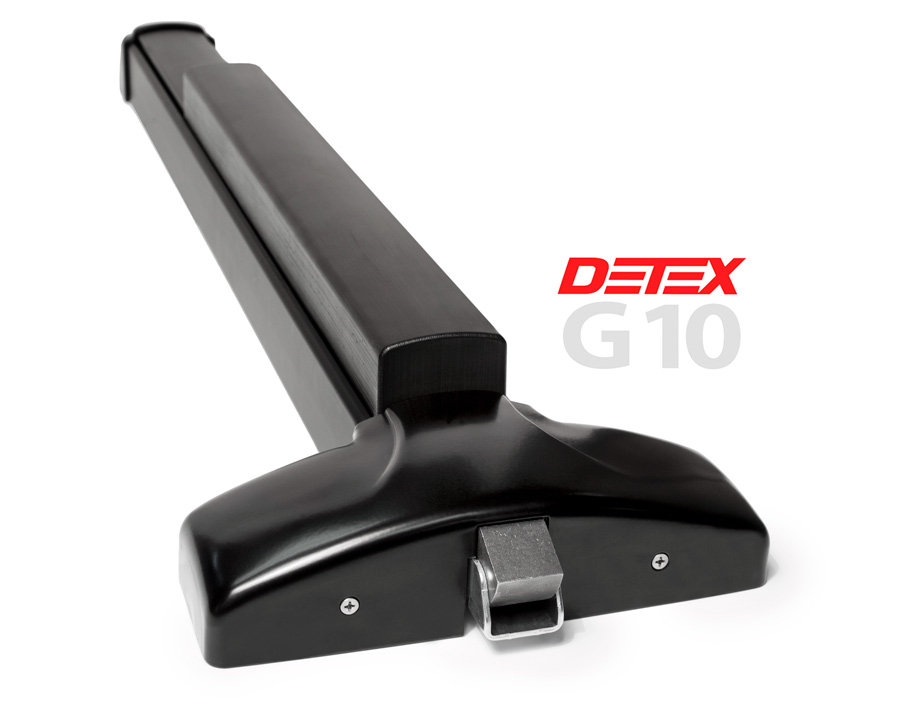

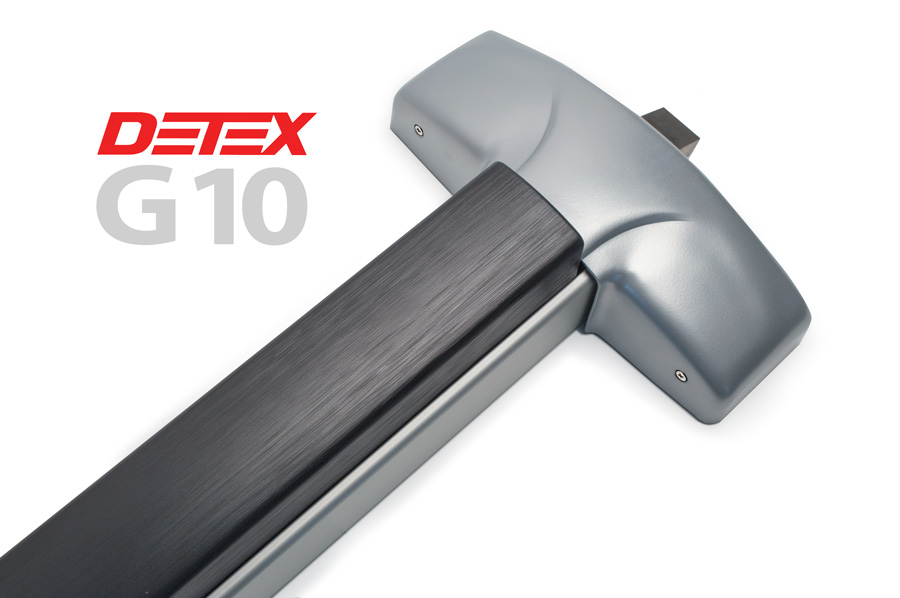

Review:  Detex G10 Exit Device

The 10 Series rim exit device is super-heavy-duty panic and fire exit hardware for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Benefits

  • Tough and durable design for years of trouble-free service in high-use, high-abuse environments
  • Patented mounting plate and strike locator system replaces paper templates
  • Outside trims are easily changed or re-keyed without removing device from door
  • Heavy duty angled end cap deflects damage away from device

Features

  • All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
  • Tested beyond 1,000,000 cycles – Twice the cycling required for Grade 1 UL testing
  • Stainless steel deadlocking, Pullman-type latch bolt
  • Non-handed

Mechanical Options

• F – 3-Hour Fire Rated   • H – Hurricane Rated   • AM – Anti-Microbial Coating   • CD – Cylinder Dogging   • HD – Hex Dogging (Std.)   • LD – Less Dogging Mechanical Options   • SLR – Silencer   • 99 – Surface Strike (Std.)   • 98 – Semi Mortise Strike   • EC1 – Heavy duty angled end cap (Std.)   • EC2 – Flush end cap   • 24 – Fits 24” Door Width   • 30 – Fits 30” Door Width   • 36 – Fits 36″ Door Width (Std.)   • 48 – Fits 48″ Door Width

Electrical Options

•Exit Alarm (EA)   • Electric Dogging (ED)   • Electric Latch Retraction with Request to Exit Switch (ER EX)   • Delayed Egress – Self Contained (EE)   • Delayed Egress with Latch Retraction (EE ER) Electrical Options   • Electric Integration (EI)   • Electric Unlock (EU)     • Latch Bolt Signaling (LX)   • Latch Bolt Signaling for High Voltage (LXV)   • Electric Switching (ES)   • Request to Exit (EX)   • Request to Exit for High Voltage (EXV)
